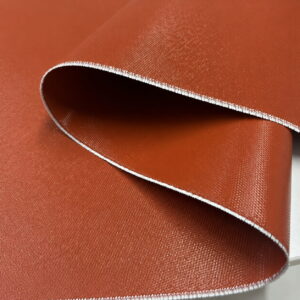

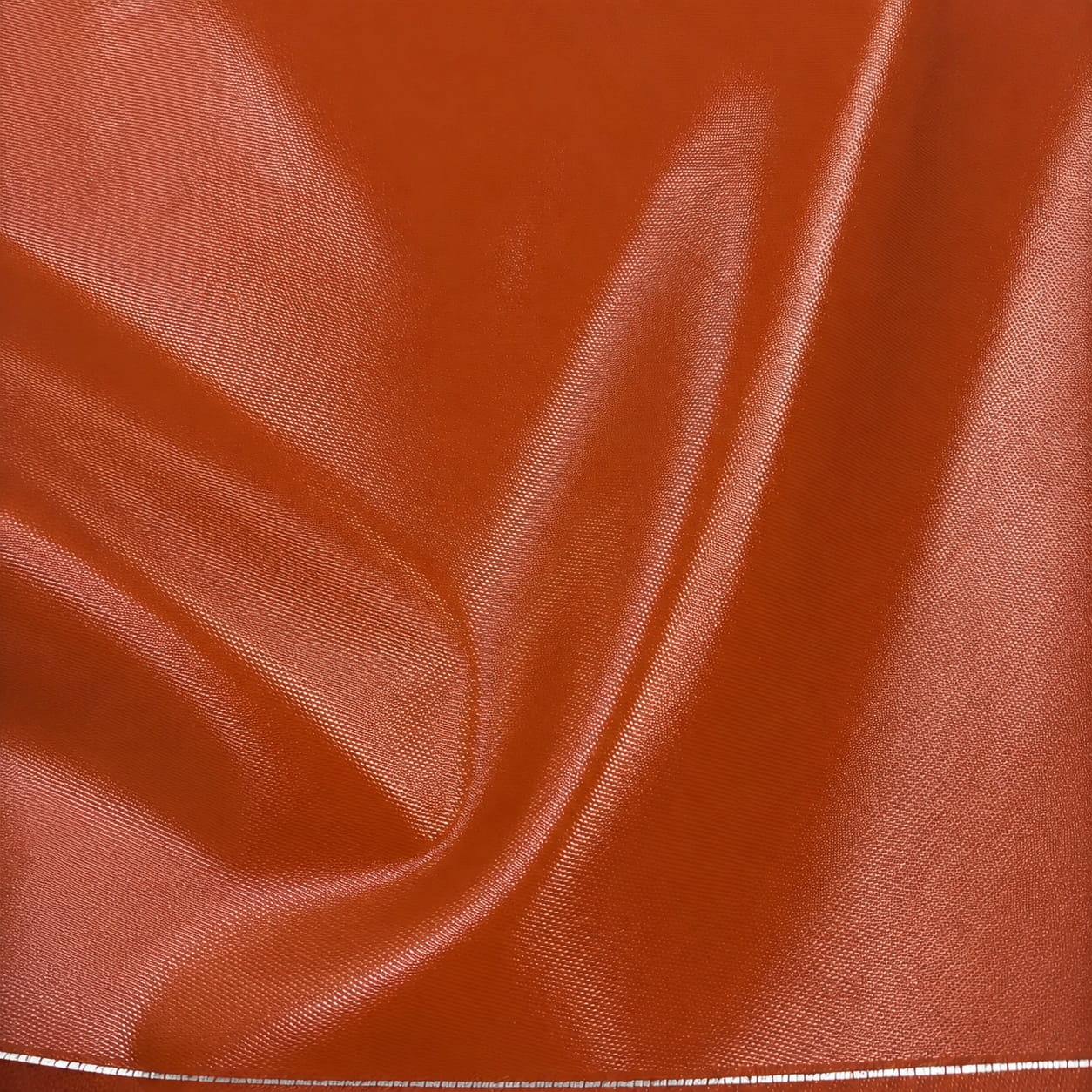

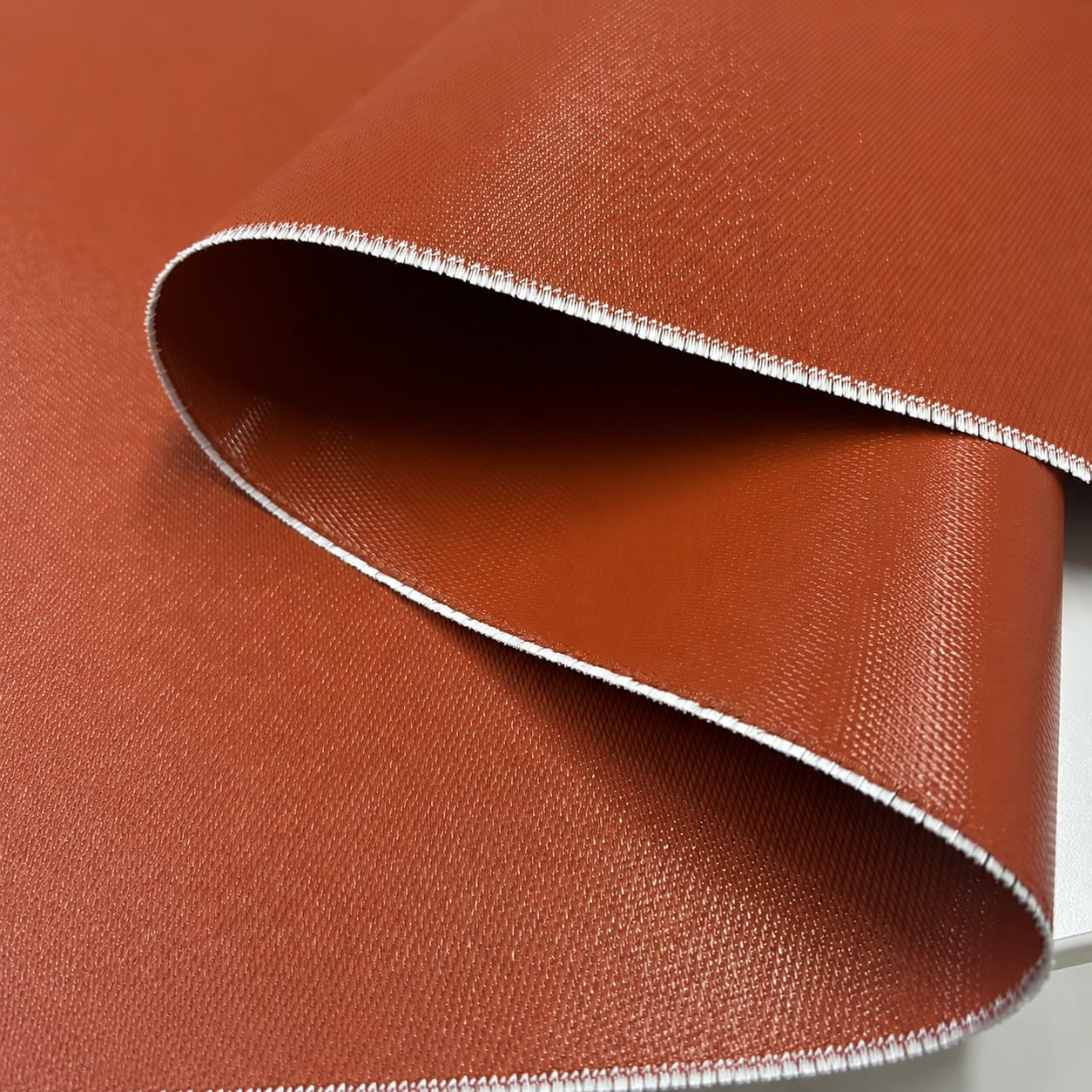

This 0.76mm 985gsm iron red double sided silicone coated fiberglass fabric is manufactured from high-strength fiberglass base cloth with silicone coating applied on both sides. It provides excellent heat resistance, waterproof performance, abrasion resistance and durable surface protection for industrial thermal protection applications.
Key specifications:
0.76mm thickness | Approx. 985gsm finished weight | Double-sided liquid silicone coating | Iron red color | Fiberglass base fabric | OEM & ODM available
• Double-sided silicone coating provides enhanced waterproof, oil-resistant and wear-resistant performance
• High-strength fiberglass structure offers good mechanical strength and dimensional stability
• Flexible material suitable for cutting, sewing and fabrication into industrial protective products
• Suitable for welding blankets, fire curtains, insulation covers and high-temperature protection applications
Factory direct supply. Free samples and fast quotation available.
Heavy Duty Double Sided Silicone Coated Fiberglass Fabric
This 0.76mm double sided silicone coated fiberglass fabric is made from high-strength fiberglass base fabric with silicone coating applied on both sides. It provides excellent heat resistance, waterproof performance and surface protection for demanding industrial applications.
Featuring 985gsm finished weight and 0.76mm thickness, this heavy-duty silicone coated fiberglass fabric combines high mechanical strength, flexibility and resistance to heat, moisture, oil and chemicals.
Designed for thermal protection and fire safety applications, this silicone coated fiberglass fabric is widely used for welding blankets, fire curtains, thermal insulation covers and customized heat protection products.
As a direct manufacturer, we provide OEM/ODM customization, flexible specifications and factory supply support.
| Item | Specification |
|---|---|
| Product Type | 0.76mm 985gsm Iron Red Double Sided Silicone Coated Fiberglass Fabric |
| Base Material | Woven fiberglass fabric |
| Silicone Coating | Iron red liquid silicone rubber |
| Coating Side | Double sided silicone coating |
| Typical Finished Weight | Approx. 985 g/m² |
| Nominal Thickness | 0.76 ± 0.05 mm |
| Continuous Service Temp (Silicone Coating) | -55°C to +260°C, long-term continuous operation |
| Fiberglass Substrate Heat Resistance | Up to 550°C for short-term exposure; the silicone coating may degrade above its rated service temperature |
| Short-Term Peak Radiant Heat | Up to 1100°C for momentary spark or molten metal splash exposure |
| Standard Width | 1.0 m / Customizable |
| Roll Length | 50 m / Customizable |
| Color | Iron Red / Customizable |
| Surface Characteristics | Water-resistant, oil-resistant, abrasion-resistant and flexible |
| Anwendungen | Welding blankets, fire curtains, thermal insulation covers, removable insulation jackets and industrial heat protection systems |
Need confirmation on specifications, availability or technical documents?
Designed for demanding industrial environments, this double sided silicone coated fiberglass fabric combines heat resistance, mechanical strength and surface protection for reliable thermal protection performance.
Silicone coating on both sides improves surface protection and provides resistance to moisture, oil and abrasion during industrial applications.
The fiberglass substrate maintains structural stability under high temperatures, making it suitable for welding protection and thermal insulation applications.
The reinforced fiberglass construction provides excellent tensile strength and durability for heavy-duty industrial applications.
The flexible textile structure allows easy cutting, sewing and fabrication into customized covers, blankets and insulation products.
The silicone surface provides resistance against moisture, oils, weathering and environmental aging.
Factory direct supply with customization options including color, width, roll length and fabricated solutions.
This double sided silicone coated fiberglass fabric is designed for industrial heat protection, welding safety and thermal insulation applications. The combination of high-strength fiberglass substrate and silicone coated surfaces provides reliable performance in environments requiring heat resistance, durability and flexibility.
Used for welding blankets, welding curtains and spark protection covers to protect workers, equipment and surrounding areas from welding sparks, molten metal splash and radiant heat.
Suitable for industrial fire curtains, fire barriers and heat shielding systems where flexible flame-resistant protection is required.
The flexible fiberglass structure allows fabrication into reusable insulation covers for valves, pipes, turbines and other high-temperature industrial equipment.
Applied as protective layers and outer coverings in thermal insulation systems for industrial equipment, pipelines and high-temperature components.
Used as flexible heat shield material for protecting equipment, components and working areas exposed to radiant heat and elevated temperatures.
Used in flexible expansion joint assemblies requiring heat resistance, flexibility and mechanical durability under industrial operating conditions.
Double-sided silicone coated fiberglass fabric is recommended when both surfaces require protection against heat, moisture, oil, abrasion and environmental exposure. The silicone coating on both sides improves durability, handling performance and service life in demanding industrial applications.
| Requirement | Recommended Choice |
|---|---|
| Both surfaces require heat and surface protection | Double-sided silicone coated fiberglass fabric |
| Exposure to moisture, oil or abrasion from both sides | Double-sided silicone coating for improved surface durability |
| Higher mechanical strength and longer service life are required | Heavy-duty silicone coated fiberglass fabric with reinforced fiberglass base |
| Used for welding blankets, fire curtains and thermal insulation covers | Double-sided silicone coated fiberglass fabric for flexible heat protection applications |
| Custom fabricated insulation products are required | OEM customization including cutting, sewing, dimensions and packaging |
Specification, fabrication and packaging options are available according to application and order requirements.
Different thicknesses and finished weights are available to meet various requirements for flexibility, mechanical strength and thermal protection performance.
Silicone coating weight can be customized to achieve different levels of surface protection, durability and performance requirements.
Standard width is available in 1.0 m rolls. Customized widths and roll lengths can be supplied according to production and project requirements.
Iron red is the standard color for this product. Other silicone coating colors can be customized according to application requirements and order quantity.
Fabrication services include cutting, slitting, sewing and customized processing for insulation covers, welding blankets and other industrial products.
Custom labels, roll identification, carton marks and export packaging can be arranged according to customer requirements.

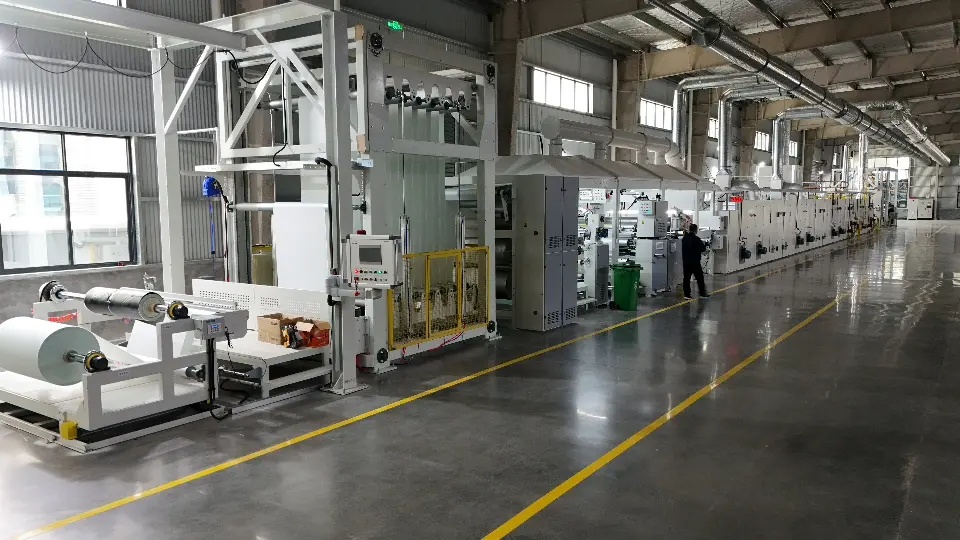

Production and inspection controls are applied from base fabric verification through silicone coating, finished-weight checks, surface inspection and pre-shipment packing.
The fiberglass base cloth is checked for material type, surface condition and basic specification consistency before coating.

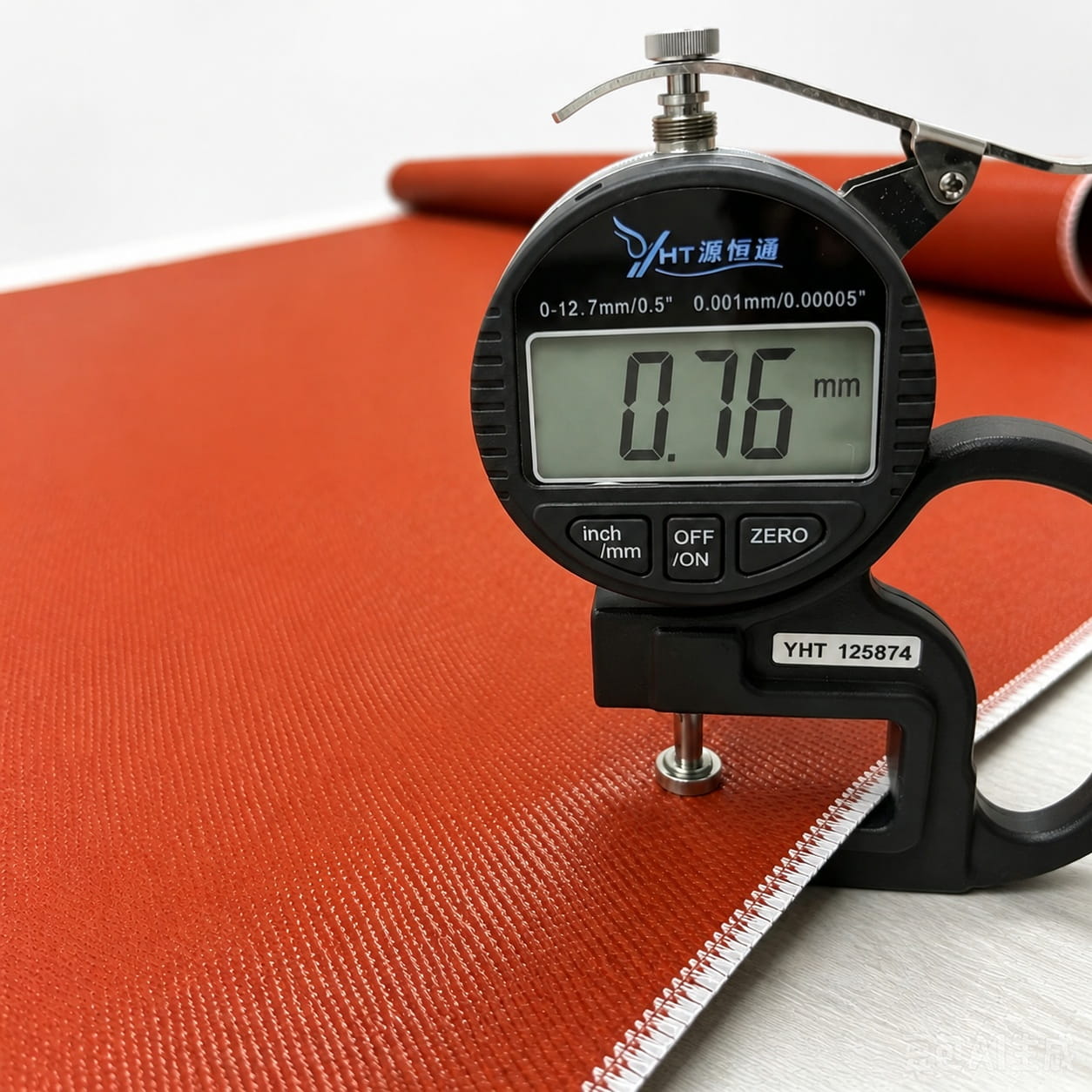

Finished thickness, base fabric weight and finished weight are checked according to the applicable production specification.
The coated surface is inspected for coating coverage, visible defects, color consistency and overall appearance.
Finished rolls are checked for width, roll condition, labels, packaging and order quantity before shipment.

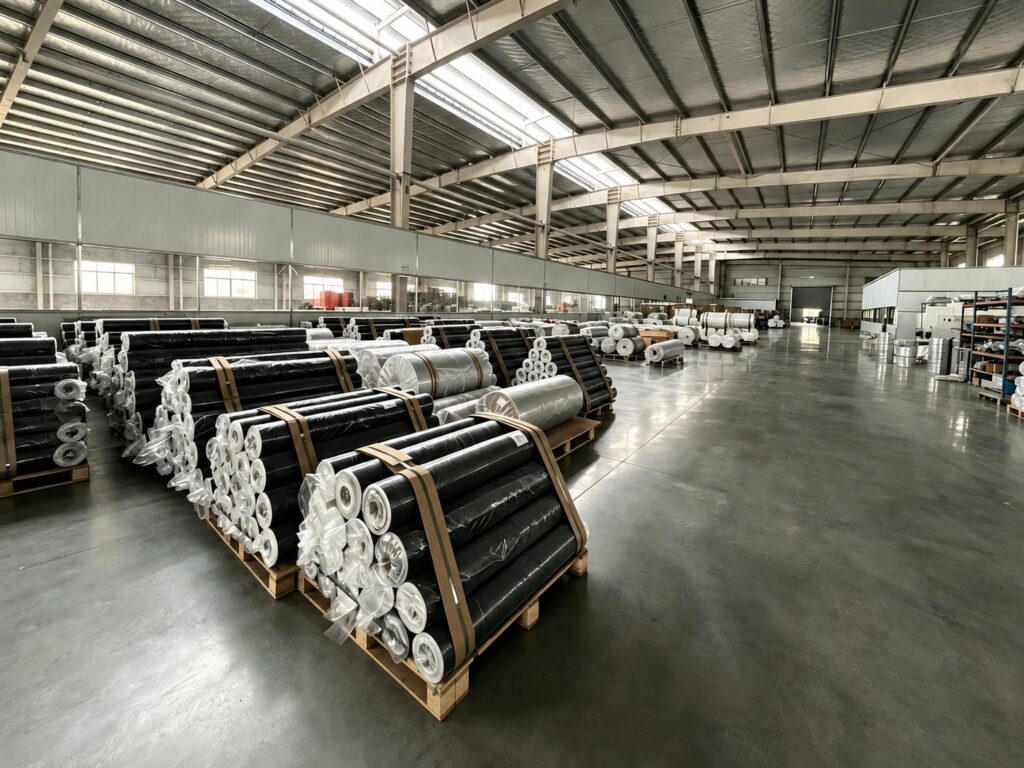

The fabric is normally supplied in rolls with protective wrapping and export-grade outer packaging. Labels, cartons, pallets and shipping marks can be arranged according to order requirements.
Fabric rolls are wound on suitable cores and wrapped to reduce dust, moisture and surface damage during handling.
Cartons, woven bags, pallets or other export packaging can be arranged according to roll size, quantity and transportation requirements.
Product labels, roll numbers, carton marks and customer branding can be provided subject to order requirements.
Commercial invoices, packing lists, certificates of origin and other available shipping documents can be prepared as required.
Send us your required specifications including thickness, width, roll length, coating weight, quantity and application. Our team will provide suitable solutions, production lead time and quotation according to your requirements.
Common problems with custom silicone fiberglass cloth
Suihua is a leading enterprise in China’s silicone fiberglass cloth industry. We are committed to providing professional technology, superior performance, and comprehensive after-sales service to meet the needs of our global customers. Suihua China strives to be your one-stop supplier. Please tell us your specific needs, and we will work with you to find solutions!
We’re a China Leading Manufacturer Since 2014.
ISO9001:2005 CE EN 1869:1997 BS EN 1869:1997 BS EN 1869:2019
Of course, you’re very welcome. Feel free to ask me any questions.
Yes, the samples are free. However, you will need to pay for the express delivery.
T/T, L/C, Trade Assurance, and Paypal are accepted.
Normally 7-30 days after receiving the advance payment. Samples will be prepared within 1-3 days.
